Advantages：Five-sided array all-round 360-degree detection, the maximum detection distance ≥ 3.0km.
Description：Security surveillance radar is mainly composed of 4 direction-finding radar front, 1 altimeter radar front, turntable and distribution control box, etc., which can accurately give the target's orientation, distance, height and speed track information. De
Application Fields：It is used for detection, warning and target indication of drones and aircraft flying at low altitude in key areas such as borders, airports and military bases.
hands-on guidance
lowest cost procurement
One-on-one after-sales service
Human response
Technical reply
Customized solutions

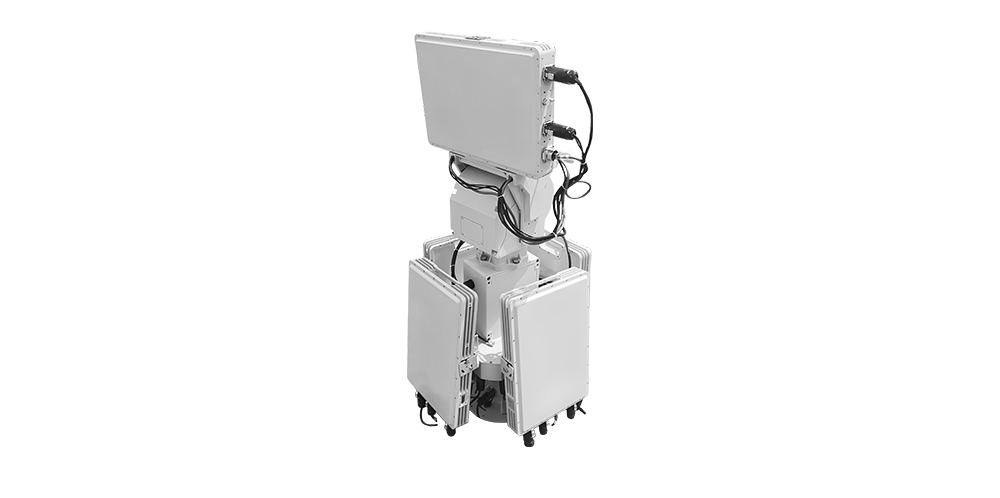

The security surveillance radar is mainly composed of 4 direction-finding radar fronts, 1 altimeter radar front, turntable and distribution control box, etc. The radar adopts C-band, phased array + azimuth phase sweep + pitch phase sweep technology system. It can accurately give the target's orientation, distance, altitude, speed and other track information.
Advanced technology systemUsing the one dimensional phase scanning mode of phased array system, the azimuth electrical scanning can realize fast scanning without inertia and support non-uniform detection.
Target rangeIt can detect all Ufos, including but not limited to regular UAVs, informal UAVs, automatic cruise (silent flight), model aircraft, self-assembled UAVs, frequency changing UAVs, etc.
High monitoring accuracyFor long-distance detection targets, it can keep high precision tracking, accurately give the target's orientation, distance, altitude and speed and other track information.
Monitoring distanceFor the effective detection distance of drones up to 3.0km, the use of very advanced sensors, with extremely high sensitivity, distance advantages.
Strong environmental adaptability7*24 hours can work in bad weather, all-weather operation, can set the defense plan as planned, and one key intelligent start the defense work.

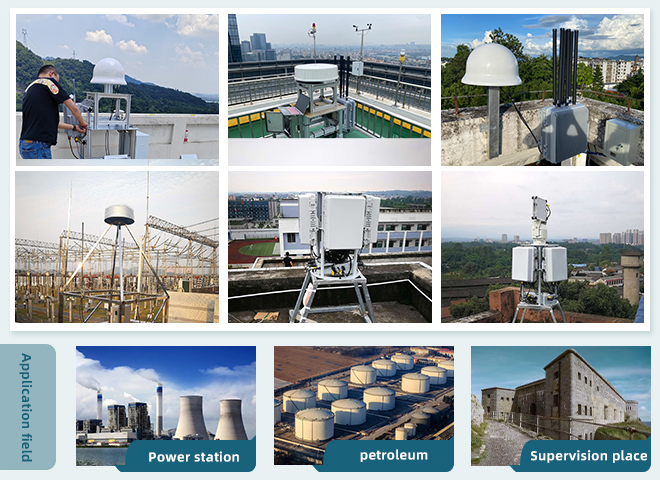

Wide range of applicationIt is used for detection, warning and target indication of drones and aircraft flying at low altitude in key areas such as borders, airports and military bases.
We are committed to the overall planning from the initial project consulting and products, to the programme design, selection and configuration, and then to the construction of the project, according to the different needs of each customer's project, tailored to the competitive integration of intelligent solutions, to help customers get a better protection effect.
