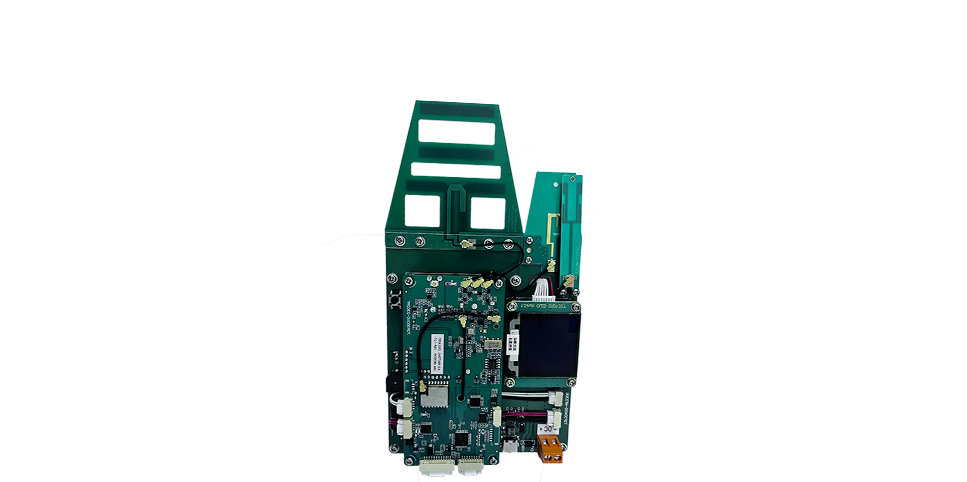

UAD-ZM01 UAV detection unit

Advantages:2dBi dual-frequency omnidirectional antenna, detection radius up to 2km, wide voltage low power consumption.

Description:Product functions: gaze direction finding for the detected target, scan the signal level of the UAV in 360° azimuth through manual operation, the unit quickly outputs the signal level of the frozen target, and finds the maximum direction as the direction

Application Fields:It is used for secondary development to build a general UAV detection system or equipment.

Get Quotation Inquiry Online

hands-on guidance

lowest cost procurement

One-on-one after-sales service

UAD-ZM01 UAV detection unit

Human response

Technical reply

Customized solutions


Both omnidirectional detection antenna and directional direction finding antenna have independent input ports, which can automatically switch between omnidirectional and directional antennas under different states. Four low-band antenna ports are reserved to provide one high-current drive output, which can drive alarm devices such as sound and optical vibration when needed.

Contact Us

Product Features

High sensitivityWith a 2dBi dual-frequency omnidirectional antenna (60mm long, 15mm wide and 2mm thick, available), an omnidirectional detection radius of more than 2km can be achieved.

Product advantageAll RF input ports are equipped with low loss limiter and can input continuous waves of up to 1W power without damage.

Wide current low power consumptionIn the input voltage range of 9~36V, the power consumption of the whole machine is less than 5w, and the 24V/5Ah battery can continue to work for more than 24 hours.

Secondary developmentAccording to the product design requirements, the detection unit is integrated, and the detection frequency band can cover 95% of the market UAV, and the performance advantage is more prominent.


Customized solutions On-site guidance for installation

We are committed to the overall planning from the initial project consulting and products, to the program design, selection and configuration, and then to the construction of the project, according to the different needs of each customer's project, tailored to the competitive integration of intelligent solutions, to help customers get a better protection effect.

There Is a Drone in My Airspace! Now What?

Get product brochure

Serving The World

For more than 10 years, we have accumulated rich experience, with customers in over 160 countries and regions. As a professional developer of C-UAS, Shenzhou Mingda has been rated as a "smart security China's good brand", and its products have gained the trust and favor of customers.

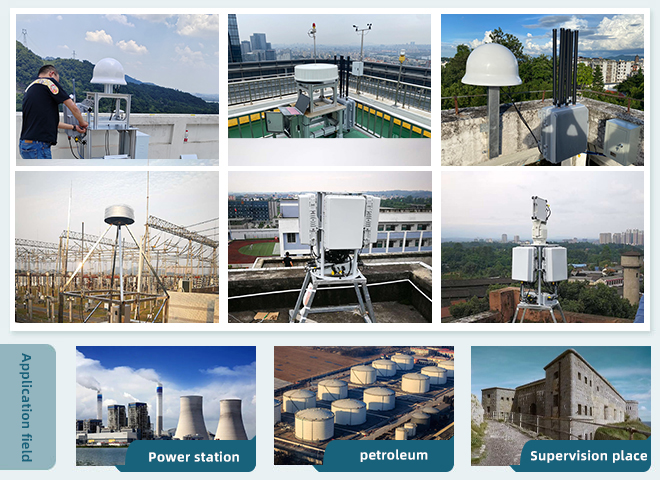

Cooperation Cases
